- 80 mm hollow shaft incremental encoder; 30 mm bore
- 100 P/R; A, B, Z output phases
- NPN open collector output; 12-24 VDC
- Max response frequency 200 kHz; 3600 rpm
- Radial connector connection; IP50 protection
- Robust design for heavy equipment shafts
Datasheet:
E80H30-100-3-N-24
Original price was: Rs 100,000.Rs 50,000Current price is: Rs 50,000.

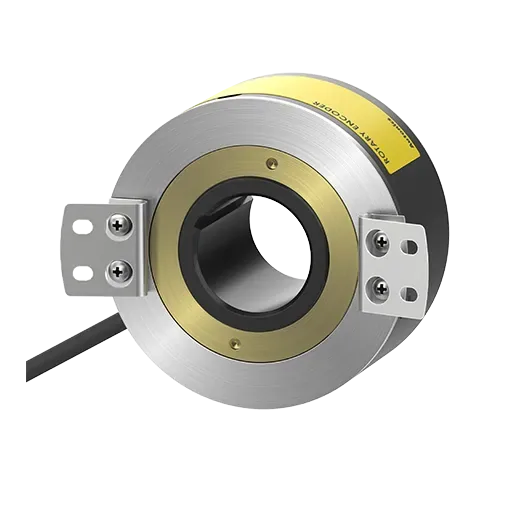

Autonics E80H30-100-3-N-24 is an 80 mm hollow-shaft incremental encoder with a 30 mm bore for direct mounting on drive shafts. Delivering 100 P/R with A/B/Z phases, NPN open-collector output on 12–24 VDC, and up to 200 kHz / 3600 rpm operation, it provides robust, compact feedback on heavy equipment and rotary fixtures.
Features
- 80 mm hollow shaft incremental encoder; 30 mm bore
- 100 P/R; A, B, Z output phases
- NPN open collector output; 12-24 VDC
- Max response frequency 200 kHz; 3600 rpm
- Radial connector connection; IP50 protection
- Robust design for heavy equipment shafts
Technical specifications
| Model | E80H30-100-3-N-24 |
| Housing diameter | 80 mm (hollow shaft) |
| Shaft inner diameter | 30 mm |
| Resolution | 100 P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 12-24 VDC ±5% |
| Max response frequency | 200 kHz |
| Max allowable revolution | 3600 rpm |
| Connection type | Radial connector type |
| Protection | IP50 |
| Operating temperature | -10 to 70 °C |
For more information, visit the OEM page for E80H30-100-3-N-24.
Brand
AUTONICS
AUTONICS, a prominent brand in the field of automation, is a global leader known for its innovative solutions. With a diverse portfolio of products, Autonics specializes in providing high-quality sensors, controllers, and motion devices. Whether you require precise photoelectric sensors, advanced temperature controllers, or efficient stepper motors, Autonics delivers cutting-edge technology to meet your automation needs. Based in South Korea, Autonics has earned a reputation for reliability and performance, making it a trusted choice for professionals in the automation industry.
Elevate your automation processes with Autonics, where innovation and efficiency converge for optimal results.
