- 80 mm hollow shaft incremental encoder; 30 mm bore
- 100 P/R; A, B, Z output phases
- NPN open collector output; 12-24 VDC
- Max response frequency 200 kHz; 3600 rpm
- Radial connector connection; IP50 protection
- Robust design for heavy equipment shafts
Datasheet:
E80H30-100-3-N-24
Original price was: Rs 100,000.Rs 50,000Current price is: Rs 50,000.
Autonics E80H30-100-3-N-24 is an 80 mm hollow-shaft incremental encoder with a 30 mm bore for direct mounting on drive shafts. Delivering 100 P/R with A/B/Z phases, NPN open-collector output on 12–24 VDC, and up to 200 kHz / 3600 rpm operation, it provides robust, compact feedback on heavy equipment and rotary fixtures.
Features
- 80 mm hollow shaft incremental encoder; 30 mm bore
- 100 P/R; A, B, Z output phases
- NPN open collector output; 12-24 VDC
- Max response frequency 200 kHz; 3600 rpm
- Radial connector connection; IP50 protection
- Robust design for heavy equipment shafts
Technical specifications
| Model | E80H30-100-3-N-24 |
| Housing diameter | 80 mm (hollow shaft) |
| Shaft inner diameter | 30 mm |
| Resolution | 100 P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 12-24 VDC ±5% |
| Max response frequency | 200 kHz |
| Max allowable revolution | 3600 rpm |
| Connection type | Radial connector type |
| Protection | IP50 |
| Operating temperature | -10 to 70 °C |
For more information, visit the OEM page for E80H30-100-3-N-24.
Brand
AUTONICS
AUTONICS, a prominent brand in the field of automation, is a global leader known for its innovative solutions. With a diverse portfolio of products, Autonics specializes in providing high-quality sensors, controllers, and motion devices. Whether you require precise photoelectric sensors, advanced temperature controllers, or efficient stepper motors, Autonics delivers cutting-edge technology to meet your automation needs. Based in South Korea, Autonics has earned a reputation for reliability and performance, making it a trusted choice for professionals in the automation industry.
Elevate your automation processes with Autonics, where innovation and efficiency converge for optimal results.
Only logged in customers who have purchased this product may leave a review.
Related products
Photoelectric Sensors
AUTONICS BX15M-TFR-T | Standard Rectangular AC/DC Through-Beam Photoelectric Sensor

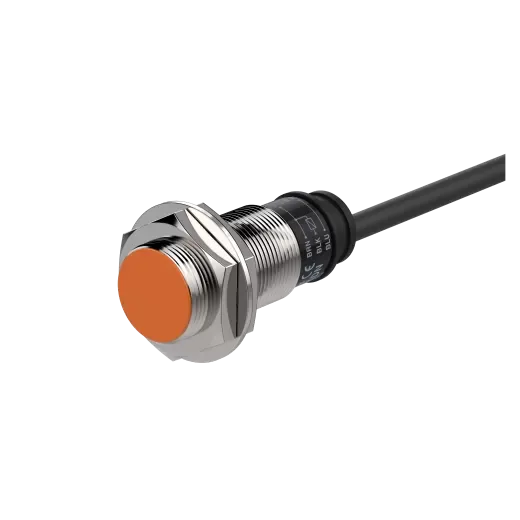

Inductive Type
Original price was: Rs 17,700.Rs 9,900Current price is: Rs 9,900.

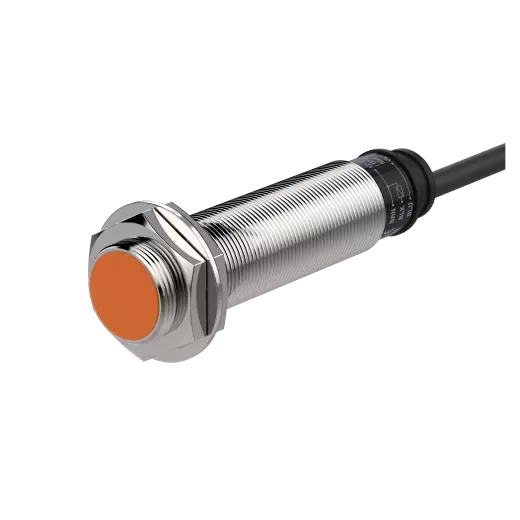

Inductive Type
Original price was: Rs 20,000.Rs 11,200Current price is: Rs 11,200.

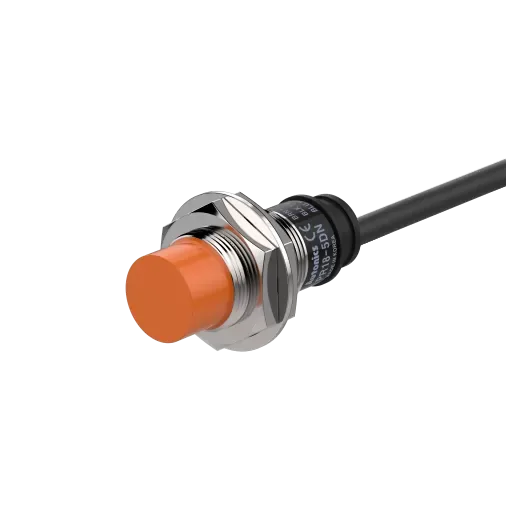

Inductive Type
