- Wheel type incremental encoder with 250 mm circumference
- 1:1 gear ratio; 250 pulses; A, B outputs
- Totem pole (push/pull) output; 12-24 VDC
- Max response frequency 180 kHz; max revolution 5000 rpm
- 2 m cable connection; IP50 enclosure
- Suitable for length/speed measurement on moving materials
Datasheet:
ENC-1-1-T-24
Original price was: Rs 92,000.Rs 41,500Current price is: Rs 41,500.

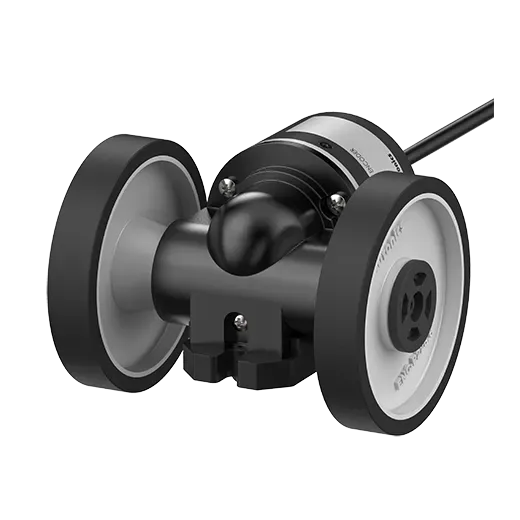

Autonics ENC-1-1-T-24 is a wheel type incremental rotary encoder with a 250 mm measuring wheel, 1:1 gear ratio, and 250 pulses per revolution for fine length and speed measurement on moving materials. It provides A/B quadrature outputs via a totem-pole (push/pull) driver, supports 12–24 VDC, and tracks up to 180 kHz at 5000 rpm for high-throughput lines.
Features
- Wheel type incremental encoder with 250 mm circumference
- 1:1 gear ratio; 250 pulses; A, B outputs
- Totem pole (push/pull) output; 12-24 VDC
- Max response frequency 180 kHz; max revolution 5000 rpm
- 2 m cable connection; IP50 enclosure
- Suitable for length/speed measurement on moving materials
Technical specifications
| Model | ENC-1-1-T-24 |
| Type | Wheel type incremental rotary encoder |
| Wheel circumference | 250 mm |
| Gear ratio | 1:1 |
| Number of pulses | 250 |
| Output phase | A, B |
| Control output | Totem pole (push/pull) |
| Power voltage | 12-24 VDC ±5% (ripple P-P ≤5%) |
| Max response frequency | 180 kHz |
| Max allowable revolution | 5000 rpm |
| IP rating | IP50 |
| Operating temperature | -10 to 70 C |
| Connection | 2 m cable |
For more information, visit the OEM page for ENC-1-1-T-24.
Brand
AUTONICS
AUTONICS, a prominent brand in the field of automation, is a global leader known for its innovative solutions. With a diverse portfolio of products, Autonics specializes in providing high-quality sensors, controllers, and motion devices. Whether you require precise photoelectric sensors, advanced temperature controllers, or efficient stepper motors, Autonics delivers cutting-edge technology to meet your automation needs. Based in South Korea, Autonics has earned a reputation for reliability and performance, making it a trusted choice for professionals in the automation industry.
Elevate your automation processes with Autonics, where innovation and efficiency converge for optimal results.
