Type: AC/DC both
Sensing type: Diffuse reflective
Sensing distance: 700 mm
Sensing target : Opaque, Translucent material
Power supply : 24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON (set by switch)
Control output: Relay contact output
Original price was: Rs 41,000.Rs 20,500Current price is: Rs 20,500.
SKU: 14
Categories: Photoelectric Sensors, Rectangular Type, Sensors
Tags: Made in China, Made in Korea
The BX Universal AC/DC Photoelectric Sensors are versatile and highly configurable sensors suitable for a variety of applications. Below is an overview of their key features and technical specifications:
Key Features:
- Wide Power Supply Range: Operates on 24-240 VAC or 24-240 VDC, accommodating diverse power requirements.
- Built-in Amplifiers: Simplifies setup and eliminates the need for external amplifiers.
- Timer Functions: Configurable delay options including ON delay, OFF delay, and One-shot delay.
- Dual Operation Modes: Switch between Light ON and Dark ON modes using an easy toggle switch.
- Adjustable Sensitivity: Equipped with sensitivity adjusters for precise control.

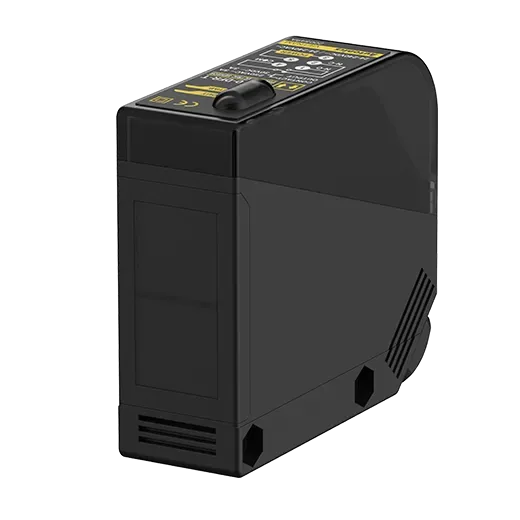

Technical Specifications for This Model (BX700-DFR):
| Specification | Details |
|---|---|
| Sensing Type | Diffuse Reflective |
| Sensing Distance | Up to 700 mm |
| Sensing Target | Opaque and Translucent Materials |
| Light Source | Infrared LED (940 nm) |
| Response Time | Maximum 20 ms |
| Power Supply | 24-240 VAC ±10% 50/60 Hz / 24-240 VDC ±10% (Ripple: max. 10%) |
| Current Consumption | Max. 3 VA |
| Sensitivity Adjustment | Via sensitivity adjuster |
| Operation Mode | Light ON / Dark ON (set by switch) |
| Control Output | Relay |
| Connection Type | Terminal Block Type |
| Ambient Illumination | Sunlight: Max. 11,000 lx; Incandescent: Max. 3,000 lx |
| Ambient Temperature | Operation: -20 to 55°C; Storage: -25 to 70°C |
| Ambient Humidity | 35 to 85% RH (operation and storage) |
| Protection Structure | IP66 |
| Hysteresis (Distance) | Max. 20% at sensing distance |
| Material | Case & Lens Cover: Polycarbonate; Sensing Part: Acrylic |
| Bracket: Steel (cold commercial); Bolt & Nut: Steel (Cr-Mo) |
Applications:
- Detecting objects in industrial automation settings.
- Monitoring translucent and opaque materials in packaging systems.
- Use in environments requiring robust IP66-rated protection.
This combination of flexibility, durability, and ease of configuration makes the BX Universal AC/DC Photoelectric Sensors an ideal choice for diverse industrial environments.
