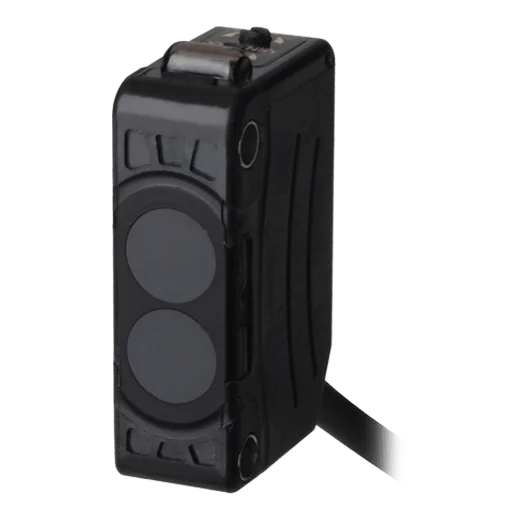

AUTONICS BJ1M-DDT | Miniature Rectangular Diffuse Reflective Photoelectric Sensor

Autonics BJ1M-DDT is a compact diffuse reflective photoelectric sensor designed for 1 m detection using an infrared LED (850 nm). It operates on 12-24 VDC with an NPN open-collector output and Light/Dark ON selection, plus a front-panel sensitivity adjuster. The IP65/IP67-rated body measures 10.6 W x 32 H x 20 L mm and includes power, operation, and stability indicators for fast alignment.

Features

• Sensitivity adjuster (VR) for quick threshold tuning
• Output rating: 26.4 VDC max, 100 mA max, residual voltage <= 1 V
• Reverse-polarity, output short-circuit, and overcurrent protection
• Clear status indication: Power (green), Operation (red), Stability (green)
• High noise immunity with stable operation in industrial environments
• 2 m round cable (approx. 3.5 mm OD) for easy wiring

Technical specifications

For more information, visit the OEM model page for the BJ1M-DDT.
