- Through-beam pair, 15 m sensing distance
- Opaque targets, min. 12 mm diameter
- Infrared LED, 850 nm
- NPN open-collector output; Light/Dark ON selectable
- 12-24 VDC supply
- IP67 protection; clear status indicators
Datasheet:
BJ15M-TDT
Original price was: Rs 41,500.Rs 24,000Current price is: Rs 24,000.

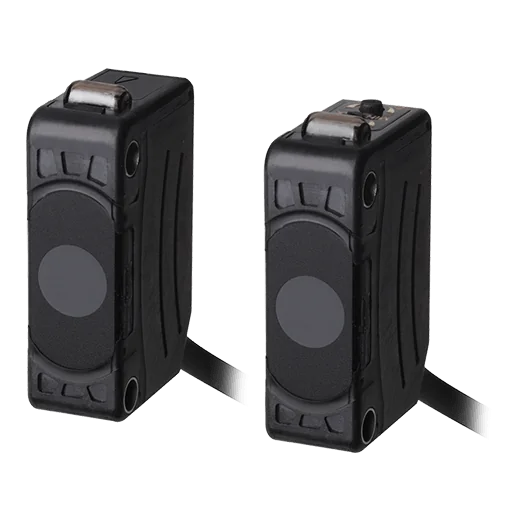

Autonics BJ15M-TDT is a through-beam photoelectric sensor set (emitter + receiver) with a 15 m range using an 850 nm infrared LED. It runs on 12-24 VDC and provides an NPN open-collector output with Light/Dark ON selection and a sensitivity adjuster. IP67 sealing and power/operation/stability indicators simplify commissioning on industrial lines.
Features
- Long-range 15 m through-beam detection for opaque objects >= 12 mm
- Front-panel sensitivity adjustment for quick threshold setting
- NPN output: 26.4 VDC max, 100 mA max, residual voltage <= 1 V
- Fast <= 1 ms response with strong noise immunity
- Power (emitter), Operation and Stability indicators
- IP67 housing for harsh environments
Technical specifications
| Model | BJ15M-TDT |
| Series | BJ |
| Sensing type | Through-beam (emitter + receiver) |
| Sensing distance | 15 m |
| Sensing target | Opaque materials, >= 12 mm diameter |
| Light source / wavelength | Infrared LED, 850 nm |
| Response time | <= 1 ms |
| Operation mode | Light ON / Dark ON selectable |
| Sensitivity adjustment | Front-panel adjuster |
| Supply voltage | 12-24 VDC +/-10% (ripple P-P <= 10%) |
| Control output | NPN open collector |
| Load voltage/current | <= 26.4 VDC / <= 100 mA |
| Residual voltage | <= 1 V (NPN) |
| Protection circuits | Reverse polarity, output short circuit, overcurrent |
| Indicators | Power, Operation, Stability |
| Protection rating | IP67 (IEC) |
For more information, visit the OEM model page for BJ15M-TDT.
Brand
AUTONICS
AUTONICS, a prominent brand in the field of automation, is a global leader known for its innovative solutions. With a diverse portfolio of products, Autonics specializes in providing high-quality sensors, controllers, and motion devices. Whether you require precise photoelectric sensors, advanced temperature controllers, or efficient stepper motors, Autonics delivers cutting-edge technology to meet your automation needs. Based in South Korea, Autonics has earned a reputation for reliability and performance, making it a trusted choice for professionals in the automation industry.
Elevate your automation processes with Autonics, where innovation and efficiency converge for optimal results.
