- 17 mm square frame size
- Inductive Proximity Sensor
- Sensing distance: 5 mm
- Output: NPN (Normally Open)
- DC 3-wire type 12-24 VDC
- Switching frequency: 700 Hz
Datasheet:
PSN17-5DN
Original price was: Rs 9,500.Rs 5,300Current price is: Rs 5,300.
SKU: PSN17-5DN
Categories: Inductive Type, Proximity Sensors, Sensors
Tags: 17 mm square, 5 mm, 700 Hz, Autonics, DC 3-wire type 12-24 VDC, NPN (Normally Open)

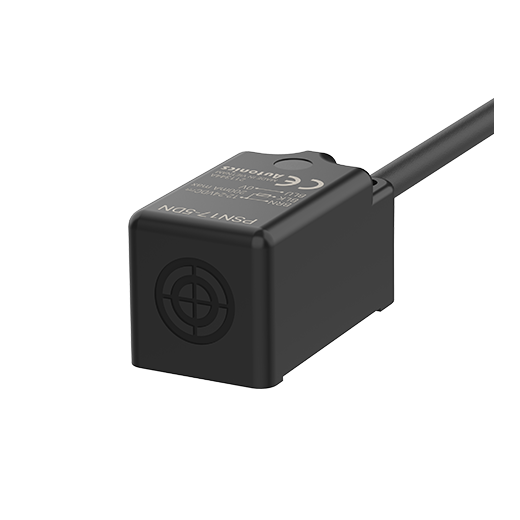

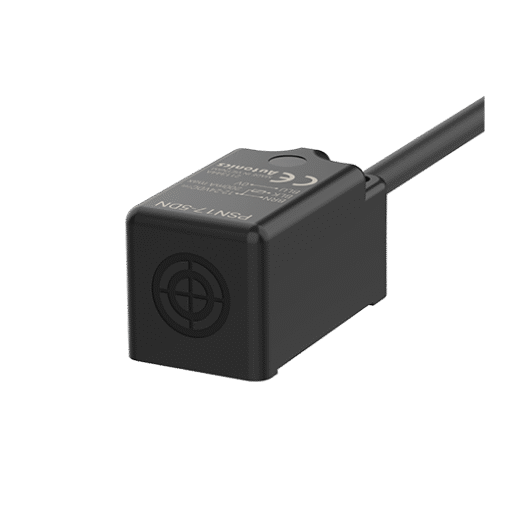

Autonics PSN17-5DN is a 17 mm square inductive proximity sensor with a sensing distance of 5 mm. It provides NPN (Normally Open) on a DC 3-wire type 12-24 VDC configuration, engineered for stable detection in industrial automation.
Features
- High noise immunity for stable detection
- Wide operating temperature range and robust build
- LED status indicator
- Built-in protection circuits (DC types)
- CE/RoHS compliant
Technical Specifications
| Wire type and power | DC 3-wire type 12-24 VDC |
| Sensing side size | Frame size 17 mm |
| Sensing distance | 5 mm |
| Standard sensing target | 18×18×1mm(iron) |
| Response frequency | 700 Hz |
| Control output | NPN (Normally Open) |
| Material | Case: Heat-resistant ABS, Standard cable(Black): Polyvinyl chloride(PVC) |
| Protection structure | IP67 |
| Operating temperature | −25 to 70 °C (no freezing/condensation) |
| Ambient humidity | 35 to 95% RH (no freezing/condensation) |
| Hysteresis (distance) | Max. 10–15% of sensing distance |
| Indicator | Operation indicator(red LED) |
For more information: Visit the OEM model page for PSN17-5DN.
Brand
AUTONICS
AUTONICS, a prominent brand in the field of automation, is a global leader known for its innovative solutions. With a diverse portfolio of products, Autonics specializes in providing high-quality sensors, controllers, and motion devices. Whether you require precise photoelectric sensors, advanced temperature controllers, or efficient stepper motors, Autonics delivers cutting-edge technology to meet your automation needs. Based in South Korea, Autonics has earned a reputation for reliability and performance, making it a trusted choice for professionals in the automation industry.
Elevate your automation processes with Autonics, where innovation and efficiency converge for optimal results.
