- 40 mm shaft type incremental encoder; 8 mm solid shaft
- Resolution 1000 P/R; ABZ (A, B, Z) quadrature
- NPN open-collector output; 12-24 VDC (+/- 5%)
- Max response frequency 300 kHz; max speed 5000 rpm
- Starting torque <= 40 gf.cm; low inertia design
- Radial cable type; protection IP50
Datasheet:
E40S8-1000-3-N-24
Original price was: Rs 100,000.Rs 45,000Current price is: Rs 45,000.

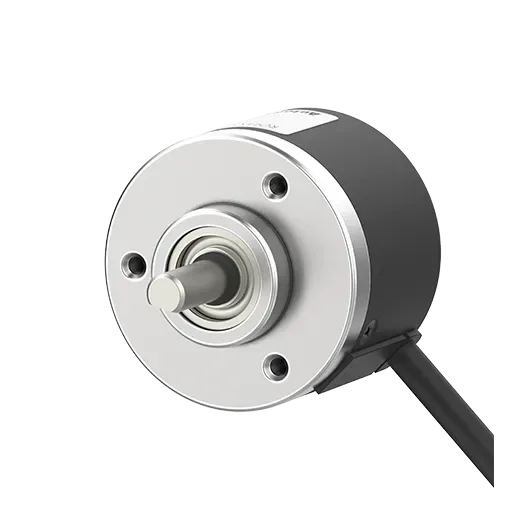

Autonics E40S8-1000-3-N-24 is a 40 mm shaft type incremental rotary encoder with an 8 mm solid shaft, 1000 pulses per revolution, NPN open-collector output, and 12-24 VDC supply for general automation.
Features
- ABZ output with index pulse for precise positioning
- 300 kHz response frequency for high-speed motion systems
- Max allowable revolution 5000 rpm with stable tracking
- Compact 40 mm housing simplifies installation in tight panels
- Durable IP50 construction and radial cable leadout
Technical specifications
| Model | E40S8-1000-3-N-24 |
| Series | E40S |
| Housing diameter | 40 mm (shaft type) |
| Shaft diameter | 8 mm |
| Resolution | 1000 P/R |
| Output phase | A, B, Z (3-phase) |
| Control output | NPN open collector |
| Power supply | 12-24 VDC (+/- 5%), ripple P-P max 5% |
| Max response frequency | 300 kHz |
| Max allowable revolution | 5000 rpm |
| Starting torque | Max 40 gf.cm (0.00392 N.m) |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Operating temperature | -10 to 70 °C (no freezing/condensation) |
| Ambient humidity | 35 to 85 % RH |
For more information, visit the OEM page for E40S8-1000-3-N-24.
Brand
AUTONICS
AUTONICS, a prominent brand in the field of automation, is a global leader known for its innovative solutions. With a diverse portfolio of products, Autonics specializes in providing high-quality sensors, controllers, and motion devices. Whether you require precise photoelectric sensors, advanced temperature controllers, or efficient stepper motors, Autonics delivers cutting-edge technology to meet your automation needs. Based in South Korea, Autonics has earned a reputation for reliability and performance, making it a trusted choice for professionals in the automation industry.
Elevate your automation processes with Autonics, where innovation and efficiency converge for optimal results.
