- BRQ M18 cylindrical; diffuse reflective, 100 mm
- Excellent noise immunity; minimal ambient light influence
- Red LED 660 nm (through-beam uses red LED 660 nm)
- Connector type (M12), NPN open-collector output
- 12-24 VDC supply; <= 1 ms response
- IP67 sensing head; clear status indicators
Datasheet:
BRQ100-DDTA-C
Original price was: Rs 40,000.Rs 23,200Current price is: Rs 23,200.

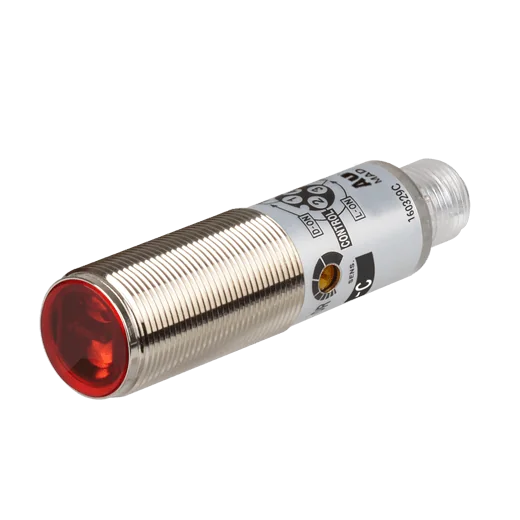

Autonics BRQ100-DDTA-C is an M18 BRQ series photoelectric sensor offering 100 mm diffuse reflective detection. The series provides high immunity to electrical noise and ambient light, and supports Light/Dark ON selection with fast 1 ms response.
Features
- Robust BRQ construction with stainless or nickel-plated brass options
- Fast <= 1 ms switching for high-speed detection
- Light/Dark ON selectable via control wire
- Reverse polarity, short-circuit, and overcurrent protection
- IP67 head; optional M12 connector variants for easy replacement
- Wide supply range: 10-30 VDC (typical)
Technical specifications
| Model | BRQ100-DDTA-C |
| Series | BRQ |
| Body size | M18 cylindrical |
| Sensing type | Diffuse reflective |
| Sensing distance | 100 mm |
| Light source / wavelength | Red LED, 660 nm |
| Response time | <= 1 ms |
| Operation mode | Light ON / Dark ON selectable |
| Supply voltage | 12-24 VDC +/-10% (10-30 VDC typical) |
| Control output | Connector type (M12), NPN open collector |
| Protection circuits | Reverse polarity, output short circuit, overcurrent |
| Protection rating | IP67 (IEC) |
For more information, visit the OEM model page for BRQ100-DDTA-C.
Brand
AUTONICS
AUTONICS, a prominent brand in the field of automation, is a global leader known for its innovative solutions. With a diverse portfolio of products, Autonics specializes in providing high-quality sensors, controllers, and motion devices. Whether you require precise photoelectric sensors, advanced temperature controllers, or efficient stepper motors, Autonics delivers cutting-edge technology to meet your automation needs. Based in South Korea, Autonics has earned a reputation for reliability and performance, making it a trusted choice for professionals in the automation industry.
Elevate your automation processes with Autonics, where innovation and efficiency converge for optimal results.
