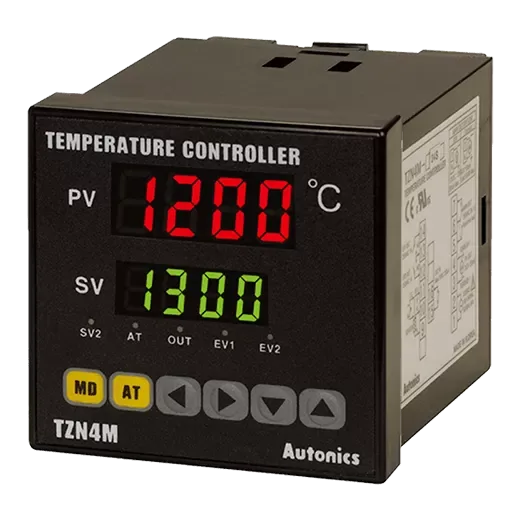

AUTONICS TZN4M-T2S – Digital Temperature Controller
- DIN 72 x 72 mm digital PID temperature controller
- Dual-speed PID control with auto-tuning
- Universal input: thermocouple K/J/T/E/R/S/N/W; RTD Pt100/JPt100; analog 1-5 V / 0-10 V / 4-20 mA
- Control outputs: SSR drive (voltage pulse)
- Display accuracy: +/- 0.3% F.S.; sampling cycle 500 ms
- Power supply: 24 VAC / 24-48 VDC
Datasheet:
TZN4M-T2S
Original price was: Rs 100,000.Rs 45,000Current price is: Rs 45,000.
Autonics TZN4M-T2S is a dual-speed PID digital temperature controller built for precise control and fast stabilization in 72 x 72 mm panels. TZN4M-T2S supports universal sensor inputs (TC, RTD, and analog), allowing one controller to standardize across many machines. The model’s SSR drive control output integrates neatly with solid-state power relays, while TZN4M-T2S adds RS-485 Modbus communication for parameter management and SCADA links. High display accuracy (+/- 0.3% FS) and a 500 ms sampling cycle help TZN4M-T2S maintain tight process tolerances on ovens, heaters, and packaging lines.
Features
- Dual-speed PID control with 2 auto-tuning modes
- Universal input selection: TC (K/J/E/T/R/S/N/W), RTD (Pt100/JPt100), analog (1–5 V, 0–10 V, 4–20 mA)
- SSR drive main control output (approx. 12 VDC, 30 mA max)
- RS-485 (Modbus RTU) communication (T option)
- Display accuracy +/- 0.3% FS; sampling 500 ms
- Wide low-voltage supply: 24 VAC / 24–48 VDC
Technical Specifications
| Model | TZN4M-T2S |
|---|---|
| Panel size | DIN 72 x 72 mm; panel cut-out approx. 68 x 68 mm |
| Display method | 4-digit 7-segment LED (PV: red, SV: green) |
| Control method | ON/OFF, P, PI, PD, PIDF, PIDS |
| Sampling cycle | 500 ms |
| Input types | Thermocouple: K/J/E/T/R/S/N/W; RTD: Pt100/JPt100 (3-wire); Analog: 1–5 V, 0–10 V, 4–20 mA |
| Display accuracy | +/- 0.3% FS (or 3 °C, whichever is greater) |
| Main control output | SSR drive (voltage pulse), approx. 12 VDC, 30 mA max |
| Option output | Event 1 + RS-485 communication (Modbus RTU) |
| Power supply | 24 VAC, 50/60 Hz / 24–48 VDC |
| Functions | Auto-tuning (2 modes), ramp functions, alarm modes, decimal point selection |
| Protection | Front panel IP65 |
| Ambient conditions | Operating -10 to 50 °C; storage -20 to 60 °C; 35 to 85% RH (non-condensing) |
| Termination | Screw terminals (rear) |
Brand
AUTONICS
AUTONICS, a prominent brand in the field of automation, is a global leader known for its innovative solutions. With a diverse portfolio of products, Autonics specializes in providing high-quality sensors, controllers, and motion devices. Whether you require precise photoelectric sensors, advanced temperature controllers, or efficient stepper motors, Autonics delivers cutting-edge technology to meet your automation needs. Based in South Korea, Autonics has earned a reputation for reliability and performance, making it a trusted choice for professionals in the automation industry.
Elevate your automation processes with Autonics, where innovation and efficiency converge for optimal results.
