- Sensing type: Through-beam type
- Sensing distance: 15m
- Sensing target: Opaque material of min. Ø15mm
- Light source: Infrared LED(850nm)
- Response time: Max. 20ms
- Power supply: 24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%)
- Operation mode: Light ON/Dark ON(set by switch)
- Control output: Relay
Original price was: Rs 41,000.Rs 18,500Current price is: Rs 18,500.
SKU: 14-1-1-1
Categories: Photoelectric Sensors, Rectangular Type, Sensors
Tags: Made in China, Made in Korea

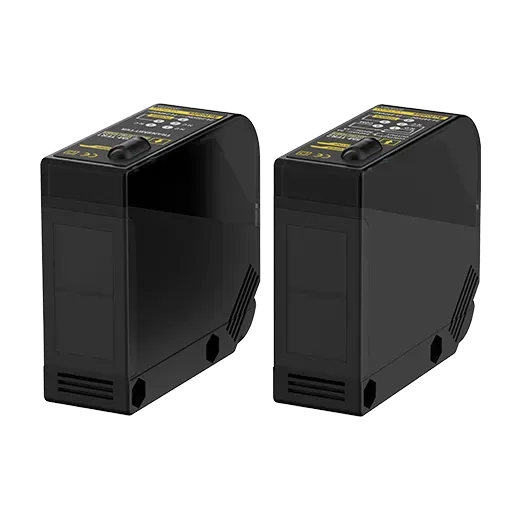

The BX Universal AC/DC Photoelectric Sensors are versatile and highly configurable sensors suitable for a variety of applications. Below is an overview of their key features and technical specifications:
Key Features:
- Wide Power Supply Range: Operates on 24-240 VAC or 24-240 VDC, accommodating diverse power requirements.
- Built-in Amplifiers: Simplifies setup and eliminates the need for external amplifiers.
- Timer Functions: Configurable delay options including ON delay, OFF delay, and One-shot delay.
- Dual Operation Modes: Switch between Light ON and Dark ON modes using an easy toggle switch.
- Adjustable Sensitivity: Equipped with sensitivity adjusters for precise control.
Technical Specifications for This Model (BX15M-TFR)
| Specification | Details |
|---|---|
| Sensing Type | Through-beam Type |
| Sensing Distance | 15 m |
| Sensing Target | Opaque material of minimum Ø15 mm |
| Light Source | Infrared LED (850 nm) |
| Response Time | Max. 20 ms |
| Power Supply | 24-240 VAC ±10% 50/60 Hz / 24-240 VDC ±10% (Ripple: max. 10%) |
| Current Consumption | Emitter/Receiver: Max. 3 VA |
| Sensitivity Adjustment | Via sensitivity adjuster |
| Operation Mode | Light ON / Dark ON (set by switch) |
| Control Output | Relay |
| Connection Type | Terminal Block Type |
| Ambient Illumination | Sunlight: Max. 11,000 lx; Incandescent: Max. 3,000 lx |
| Ambient Temperature | -20 to 55°C (operation); -25 to 70°C (storage) |
| Ambient Humidity | 35 to 85% RH (operation and storage) |
| Protection Structure | IP65 |
| Material | Case & Lens Cover: Polycarbonate; Sensing Part: Acrylic |
| Bracket: Steel (cold commercial); Bolt & Nut: Steel (Cr-Mo) | |
| Accessories (Common) | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 225 g |
Applications
- Long-distance detection in industrial automation systems.
- Detection of opaque materials in material handling and sorting applications.
- Suitable for environments requiring robust IP65-rated protection.
The BX15M-TFR is a high-performance sensor designed for reliable and precise object detection over long distances, making it ideal for demanding industrial applications.
Brand
AUTONICS
AUTONICS, a prominent brand in the field of automation, is a global leader known for its innovative solutions. With a diverse portfolio of products, Autonics specializes in providing high-quality sensors, controllers, and motion devices. Whether you require precise photoelectric sensors, advanced temperature controllers, or efficient stepper motors, Autonics delivers cutting-edge technology to meet your automation needs. Based in South Korea, Autonics has earned a reputation for reliability and performance, making it a trusted choice for professionals in the automation industry.Elevate your automation processes with Autonics, where innovation and efficiency converge for optimal results.
