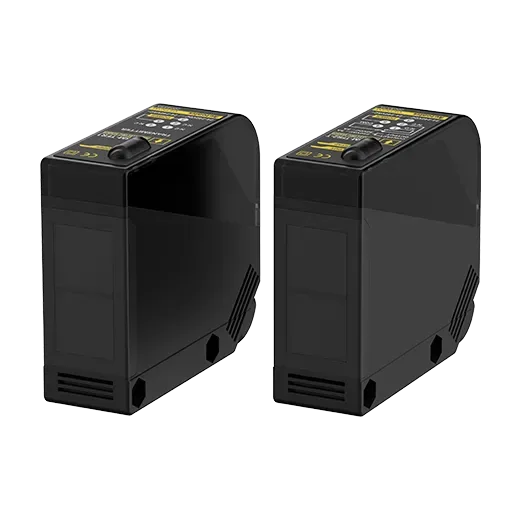

AUTONICS BX15M-TFR-T | Standard Rectangular AC/DC Through-Beam Photoelectric Sensor

Autonics BX15M-TFR-T is a standard rectangular AC/DC photoelectric sensor providing 15 m through-beam detection using a infrared led, 850 nm emitter. It features a relay contact output with Light/Dark ON selection, a front sensitivity adjuster, and universal 24-240 VAC/VDC power with built-in timer selection (on-delay/off-delay/one-shot).

Features

• Universal power input (24-240 VAC/VDC) for easy retrofits
• Sensitivity adjuster for quick threshold setup
• Relay contact output, Light/Dark ON selectable
• Infrared LED, 850 nm and photo IC receiver for stable operation
• Max 20 ms response; strong noise immunity
• IP66 housing; terminal block wiring

Technical specifications

For more information, visit the OEM model page for BX15M-TFR-T.
